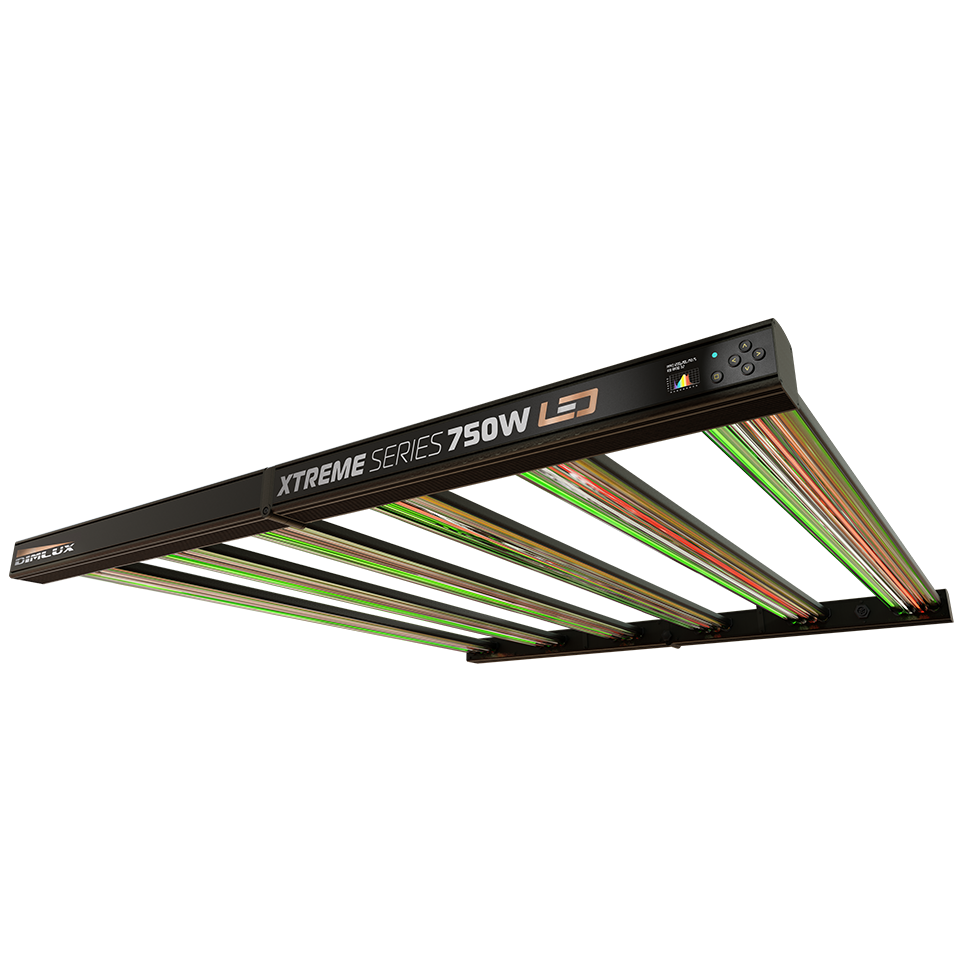

Dimlux Extreme Series LED 750W NIR
Dimlux Extreme Series LED 750W NIR - Powerful and smart LED growlight by Dimlux.
Dimlux Extreme Series LED 750W NIR - Powerful and smart LED growlight by Dimlux.
- Light Output PPF 2276 μmol/s
- AC Input Power 799W @ 230V AC
- Optics: Patented Deep Penetration Ultra High Transmittance Lens
- Additive Light: Patented Light Pipe Multi Color 65k
- 5 Year Standard Warranty
|
XTRME SERIES |
750W (+NIR) |
|
Light Source |
LED 750W |
|
Spectrum Adjustable PhytoVegSpec® Indoor |
|
|
Light Output (PPF) |
2276 μmol/s |
|
Light Output Total (PPF 350-800nm) |
2357 μmol/s |
|
PAR Photon Efficacy (400-700nm) |
2.85 μmol/J @ 230-240V AC |
|
Total Photon Efficacy (350-800nm) |
2.95 μmol/J @ 230-240V AC |
|
AC Input Power |
799W @ 230-240V AC |
|
Spectrum Adjustable PhytoVegSpec® +NIR Indoor |
|
|
Light Output (PPF) |
2159 μmol/s |
|
Light Output Total (PPF 350-800nm) |
2317 μmol/s |
|
PAR Photon Efficacy (400-700nm) |
2.7 μmol/J @ 230-240V AC |
|
Total Photon Efficacy (350-800nm) |
2.9 μmol/J @ 230-240V AC |
|
AC Input Power |
799W @ 230-240V AC |
|
AC Input Voltage |
120-277V AC, 50/60Hz |
|
Beam Angle |
90° × 120° |
|
Optics |
Patented Deep Penetration Ultra High Transmittance Lens |
|
Auxiliary Light |
Patented Light Pipe Multi Color 65k |
|
Proximity sensor |
Doppler Radar |
|
Mounting Height Above Canopy |
30-65 cm / 11.8-25.5 in |
|
Thermal Management |
Passive |
|
Max. Ambient Temperature |
40°C / 105°F |
|
Control |
By Maxi Controller or Internal Controller |
|
Smartports (3x) |
Interlink, Plant Temperature Sensor, Light Sensor |
|
Display For Spectrum and GUI |
1.54" 65k Color IPS |
|
Total Harmonic Distortion (THD) |
< 10% |
|
Lifetime L90 |
> 50,000h |
|
IP Rating |
IP65 |
|
Certifications |
CE, UL 8800, UL 1598 Wet Location, DLC |
|
Warranty |
5 Year Standard |
|
Measurements |
1193x1090x57mm |
|
46.9x42.9x2.2 inch |
|
|
Weight |
25kg |
