VENTS Quietline

SKU
VSU 14-VENTSQUIETLINE
Στοιχεία Ομαδοποιημένου Προϊόντος
Όνομα Προϊόντος ΤΜΧ
VENTS Quietline 125 Duo
36,00 €
Vents Quietline 150 Extra
60,00 €
Περιγραφή

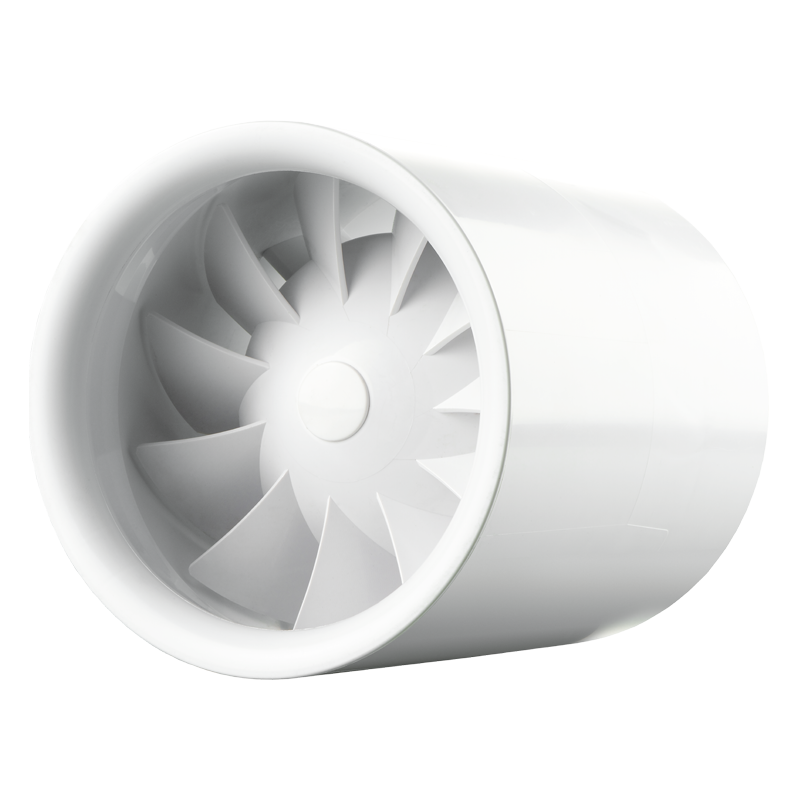

Two speed In-line axial fans. Highly efficient and almost silent.



Two Speed Axial in line fans. Superior capacity and low noise.

  • Innovative stylish extract or supply fans for enhanced comfort level.
  • Continuous or periodic ventilation of any utility space.
  • Maximum air flow combined with low noise level ensures an ideal room microclimate.
  • Exhaust or supply ventilation depending on fan installation in the system.
  • Designed for plastic (flexible) ducts.
  • Transportation of low and medium air flow volumes for small distances at low air resistance in the ventilation system.
  • Compatible with Ø 100, 125 and 150 mm air ducts.



Design

  • The casing and the impeller are made of high-quality durable plastic.
  • The exhaust spigot is fitted with specially designed air flow rectifiers to reduce air turbulence, noise level and increase air pressure.
  • The impeller design enhances fan efficiency and ensures low-noise operation of the fan.
    Ingress protection rating IP X4.



VENTS Quietline 125 Duo - max capacity 197 m3/h.

Parameter VENTS Quietline 125 Duo VENTS Quietline 125 Duo Measurement unit
  max min
Voltage 220-240   V
Frequency 50; 60   Hz
Power consumption 13 10 W
Air capacity 197 145 m³/h
Current 0.085 0.065 A
RPM 2250 1950 min-1
Sound pressure level at 3 m 32 29 dBА
Weight 0.75   kg
Spigot size 125   mm
Engine Type 220-240V / 50Hz or 220-240V / 60Hz   -
Duct diameter 125   mm
Design axial   -
IP Code IP X4   -
Type exhaust, supply   -
Mounting Inline   -

VENTS Quietline 150 Extra - max capacity 375 m3/h.

Parameter VENTS Quietline 150 Extra VENTS Quietline 150 Extra Measurement unit
  max min
Voltage 220-240   V
Frequency 50/60   Hz
Power consumption 25 22 W
Air capacity 375 285 m³/h
Current 0.109 0.103 A
RPM 2600 2300 min-1
Sound pressure level at 3 m 41 36 dBА
Weight 1.3   kg
Spigot size 150   mm
Engine Type 220-240V / 50-60Hz   -
Duct diameter 150   mm
Design axial   -
IP Code IP X4   -
Type exhaust, supply   -
Mounting Inline   -

VENTS QuietLine User Manual
